FOTRIC 226B-ENG 배가텍

10 minutes installation and commissioning in, power up ready to useBuilt-in number statistics for automatic statistics of screened people and suspected alarms, to achieve data based outbreak prevention and control

Infrared thermal imaging technology provides non contact measurement to ensure the safety of the detection personnel themselves.
Millisecond response does not affect population’s traffic efficiency and behavior habits

For abnormal temperature personnel, voice alarm will be triggered immediately,along with red box shown on the target face with an instant snap shot

With Polysilicon-FPA, a single photo is up to 110k effective temperature
measuring points, even human hair is cleared

Support 7*24 hours of continuous operation,temperature stability of ±0.5

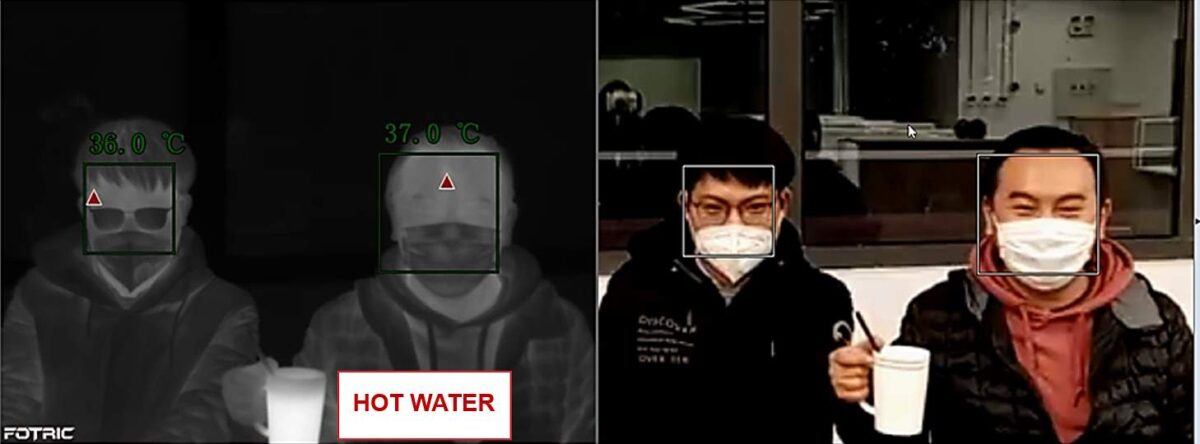

Built-in AI dual light face detection algorithm, only detect face temperature with 100% passing rate

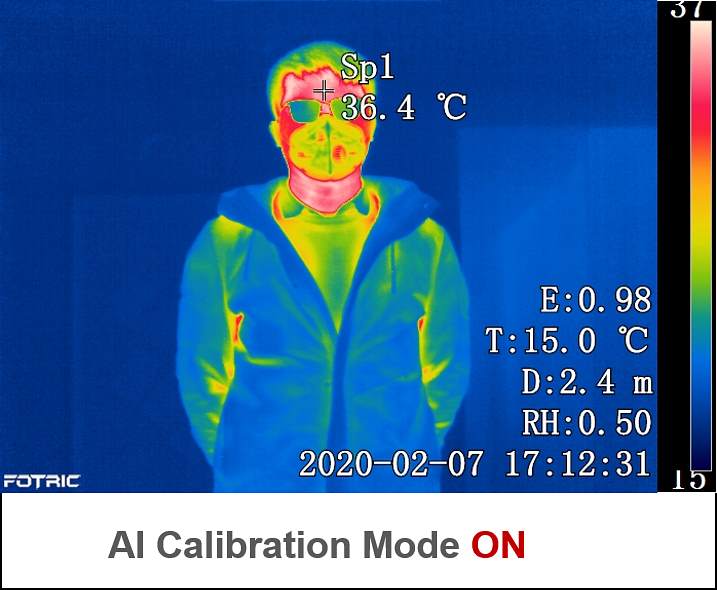

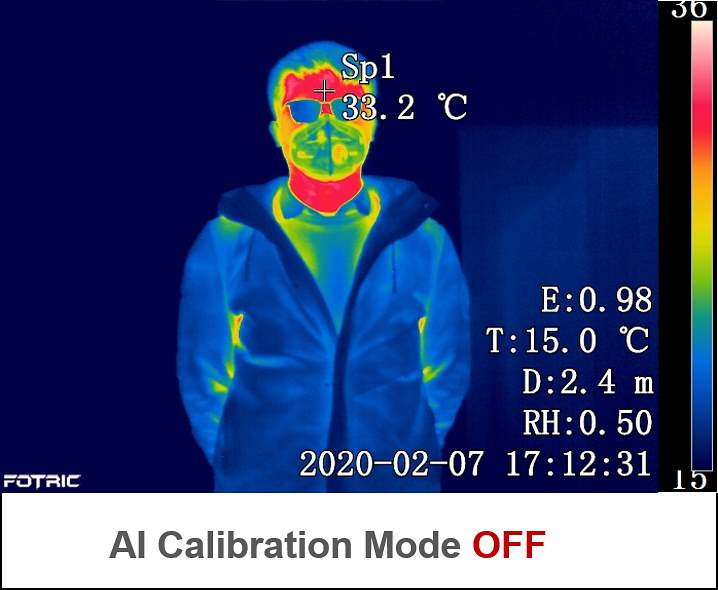

Built-in AI temperature calibration algorithm can automatic collect face temperature in different scenarios for self learning to adapt ambient temperature changes real time adjustment, i.e. body temperature varies during day and night

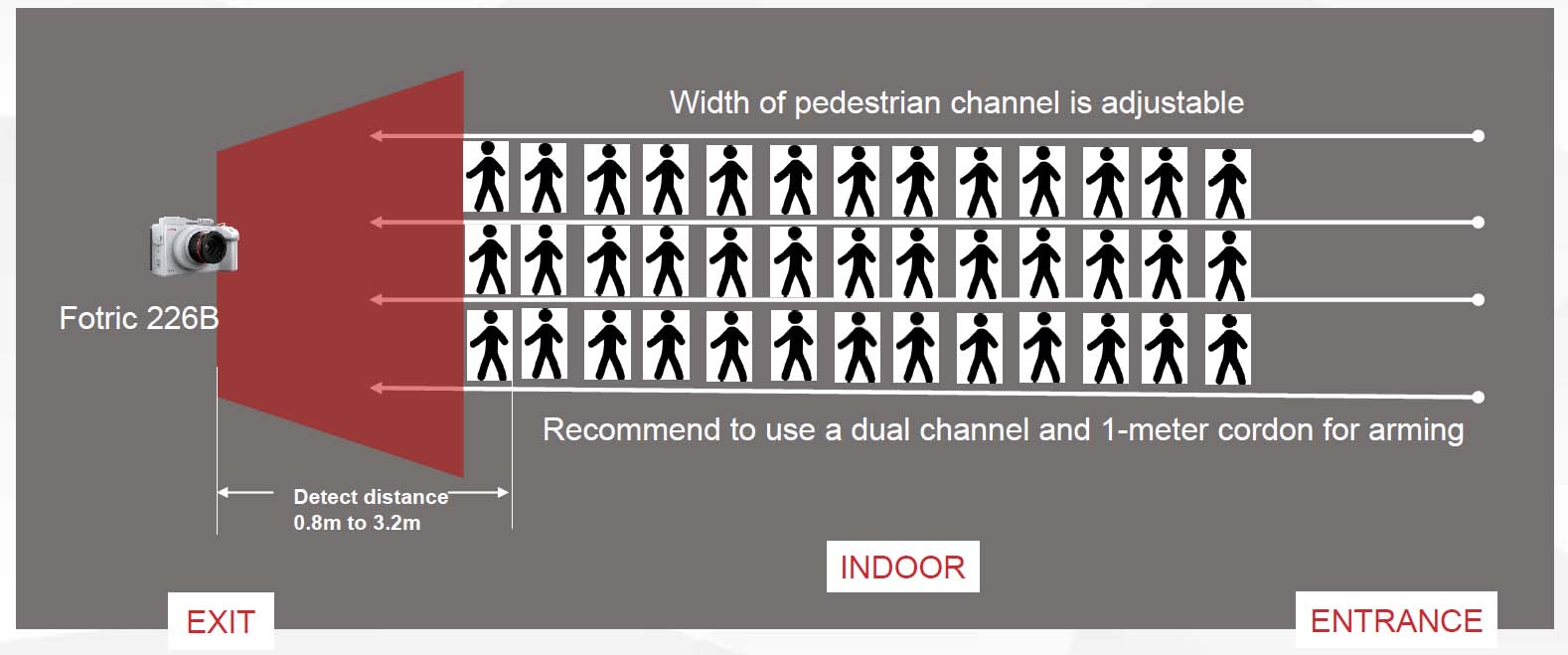

FOTRIC 226B has its best performance under indoor
maintenance, detect distance between 0.8m to 3.2m.

Warning:

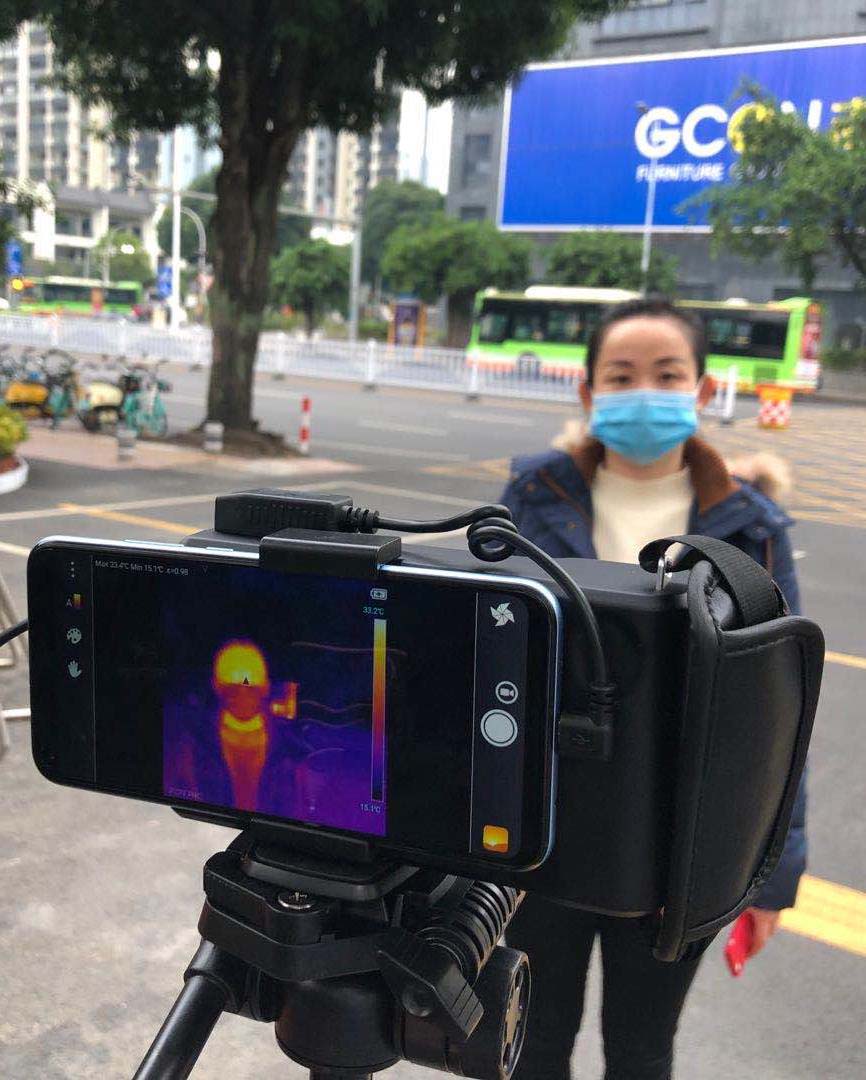

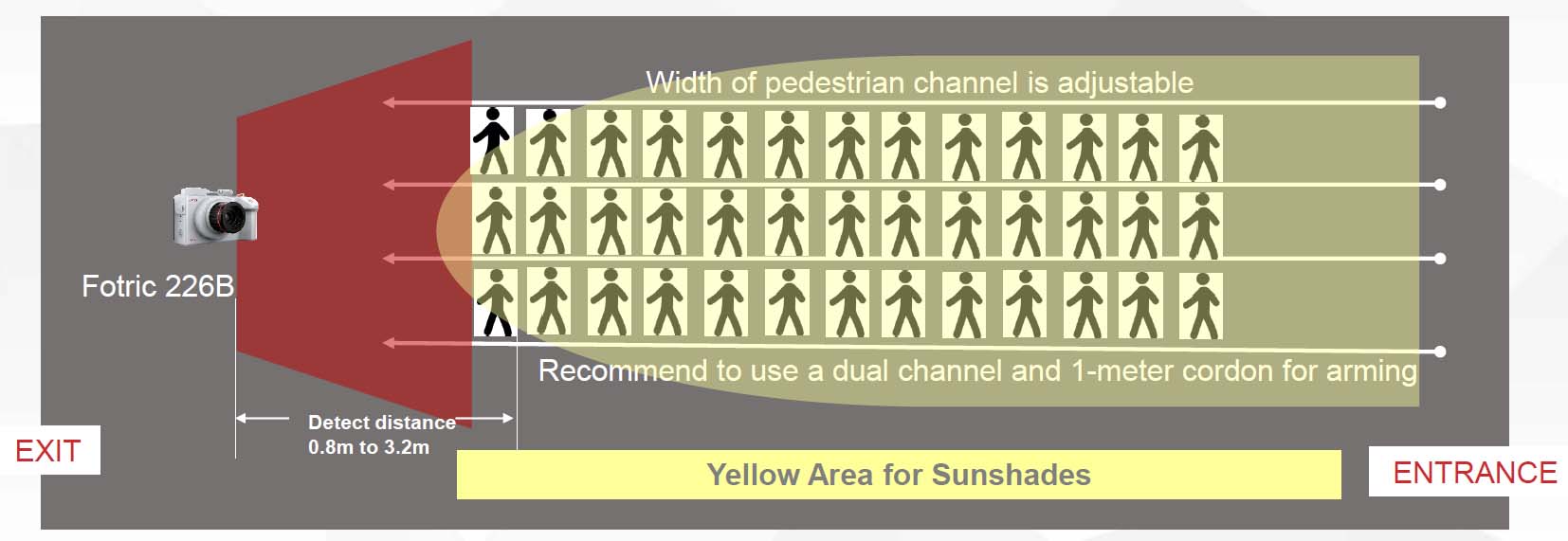

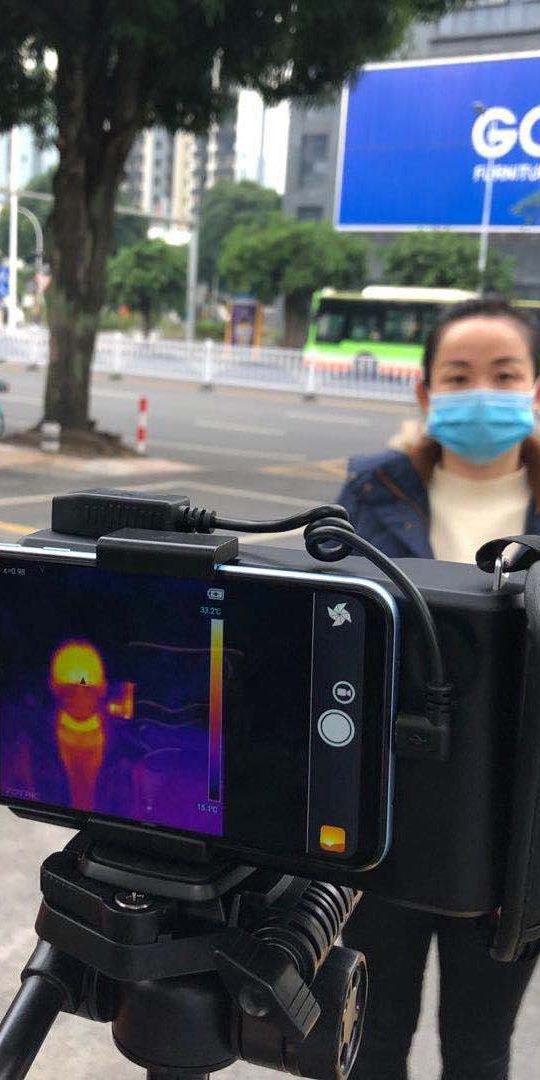

When detect outdoor, sunshades are needed to installed to prevent ambient temperature interference
When rainy and windy, body temperature is lower than average
When under sunshine, hair will absorb heat to increase temp, avoid hair for false alarm

Fotric 226B comes with WLIR software are standard. WLIR has a built-in AI face detection module, automatically lock face for temperature measurement, intelligently shield high-temperature sources other than faces in scenes.

WLIR has a built-in body temperature calibration algorithm, which automatically collects face temperature in different scenarios for self-learning, and adjusts the body temperature alarm threshold in real time by adapting to ambient temperature changes, preventing people who report abnormal body temperature due to morning or night temperature differences.

WLIR can automatically count the number of screened personnel and the number of suspected abnormal body temperature alarms during the screening process, for an epidemic prevention and control.

When an abnormal temperature person is detected, WLIR will automatically emit a buzzer to alert the alarm, and the face recognition frame of will be immediately displayed in red accordingly for a quick on-site identification.

When an alarm is triggered by an abnormal body temperature person, WLIR will automatically capture the photo of the detected person for later statistics and analysis.

500+ Universities and Research Institutes globally have chosen FOTRIC for PAPER publication on
top SCI journals

FOTRIC has won 1st Prize in the 2018 US IR/INFO Competition

FOTRIC has won 2019 German iF Industry Design Award
